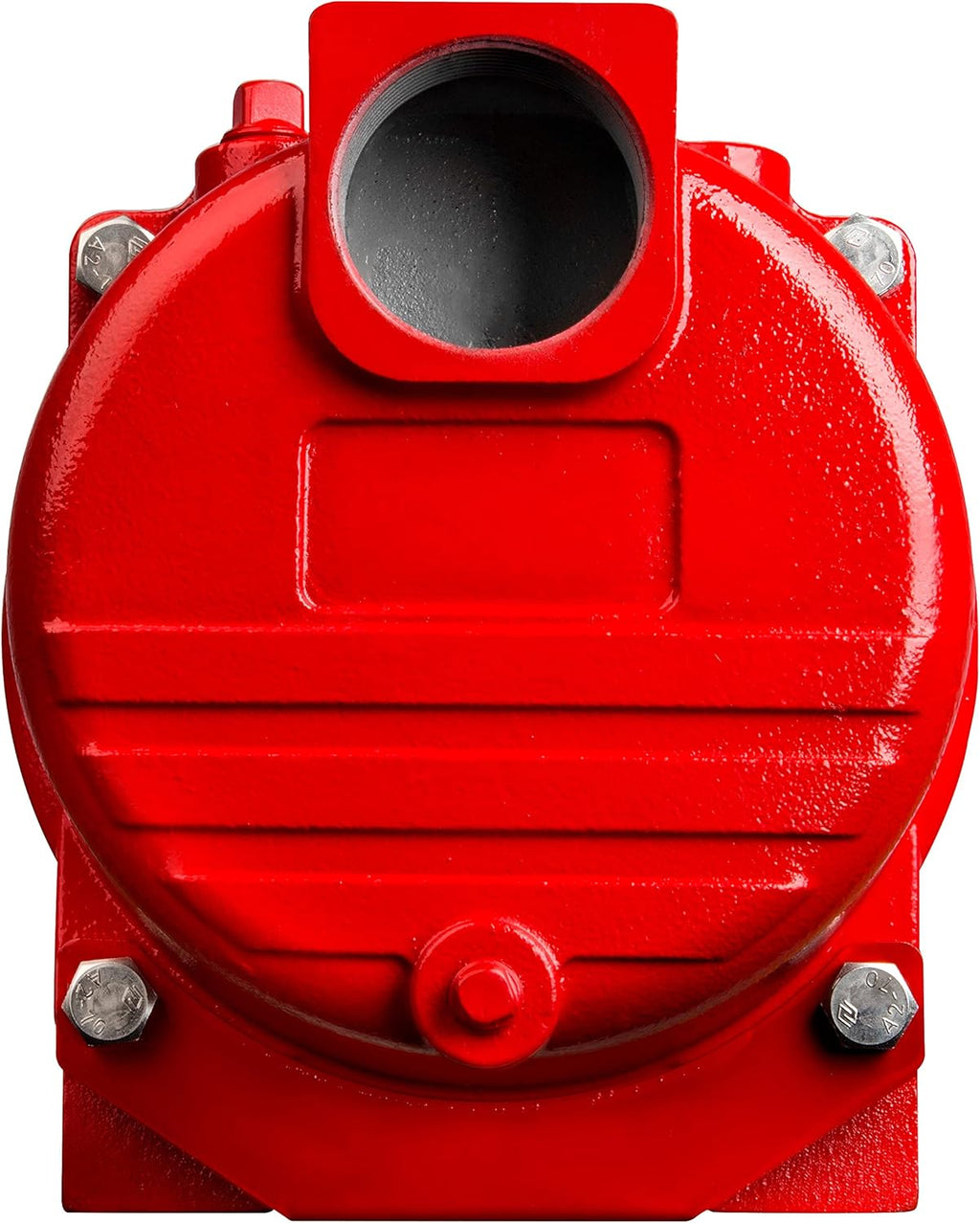

44 PSI Cast Iron Self-Priming Lawn Sprinkler Pump P109
44 PSI Cast Iron Self-Priming Lawn Sprinkler Pump P109
LAWN SPRINKLER PUMP: Red Lion non-submersible self-priming lawn sprinkler pump features a 2” FNPT suction intake and 1-1/2” FNPT outlet discharge; 1-1/2 HP pump can draw up to 71 gallons per minute at 10 PSI

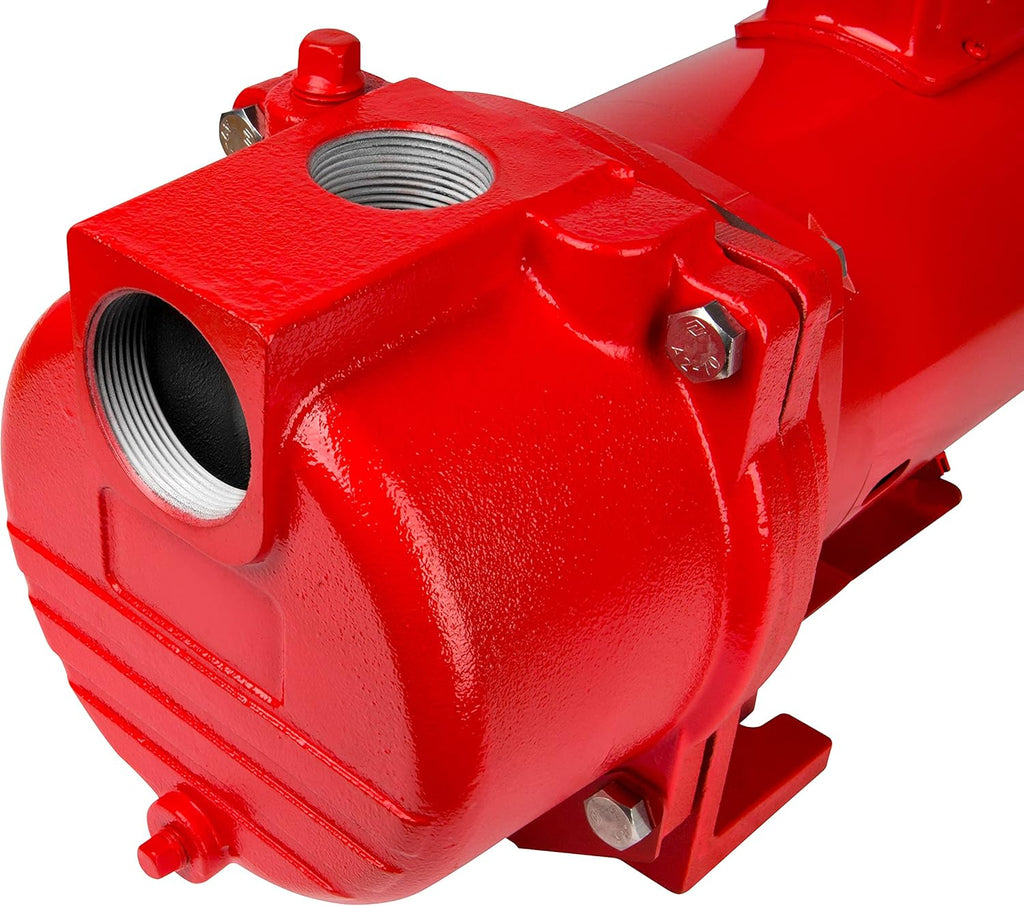

CAST IRON CONSTRUCTION: Rugged cast iron casing and pump base for long life and high-efficiency thermoplastic impeller and diffuser for durability

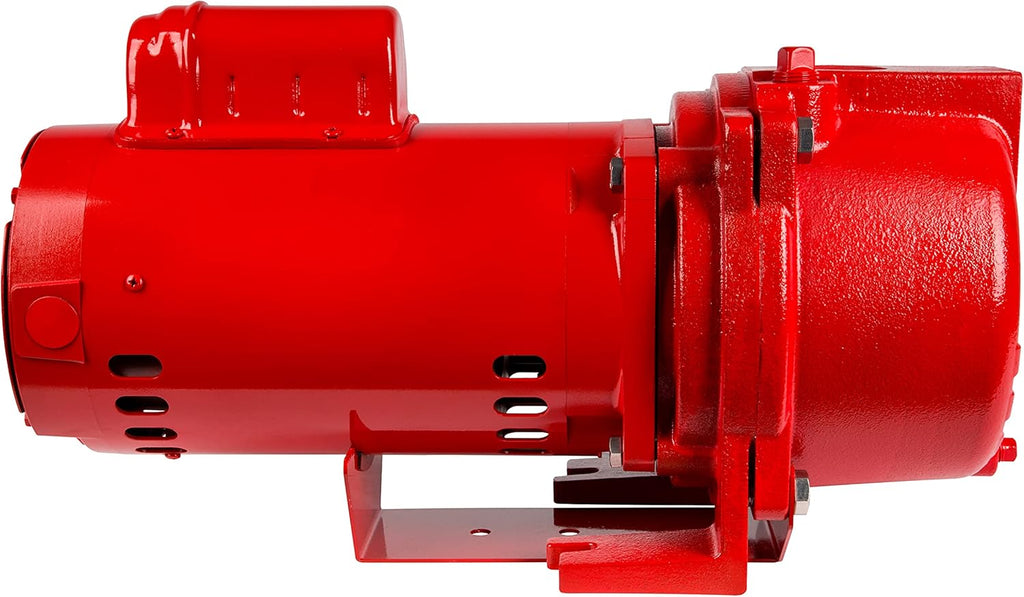

HEAVY DUTY MOTOR: The heavy-duty single-phase motor runs on either 115 or 230 volts for plenty of water movement and has a working maximum pressure of 44 PSI
HIGH VOLUME WATER DEMANDS: This pump is easy to prime up to 25 feet high and is fantastic for transferring high volumes of water from a lake or pond, or well; This pump can handle up to 14 sprinkler heads with ½” fittings

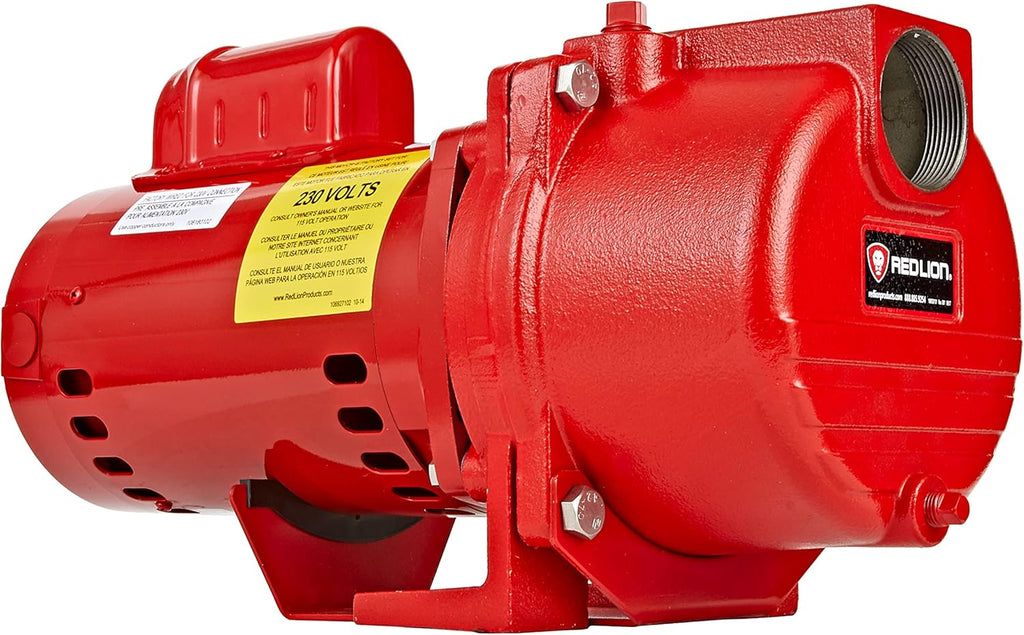

HEAVY DUTY MOTOR: The CSA approved heavy-duty motor runs on either 115 or 230 volts; Includes a capacitor for increased starting power

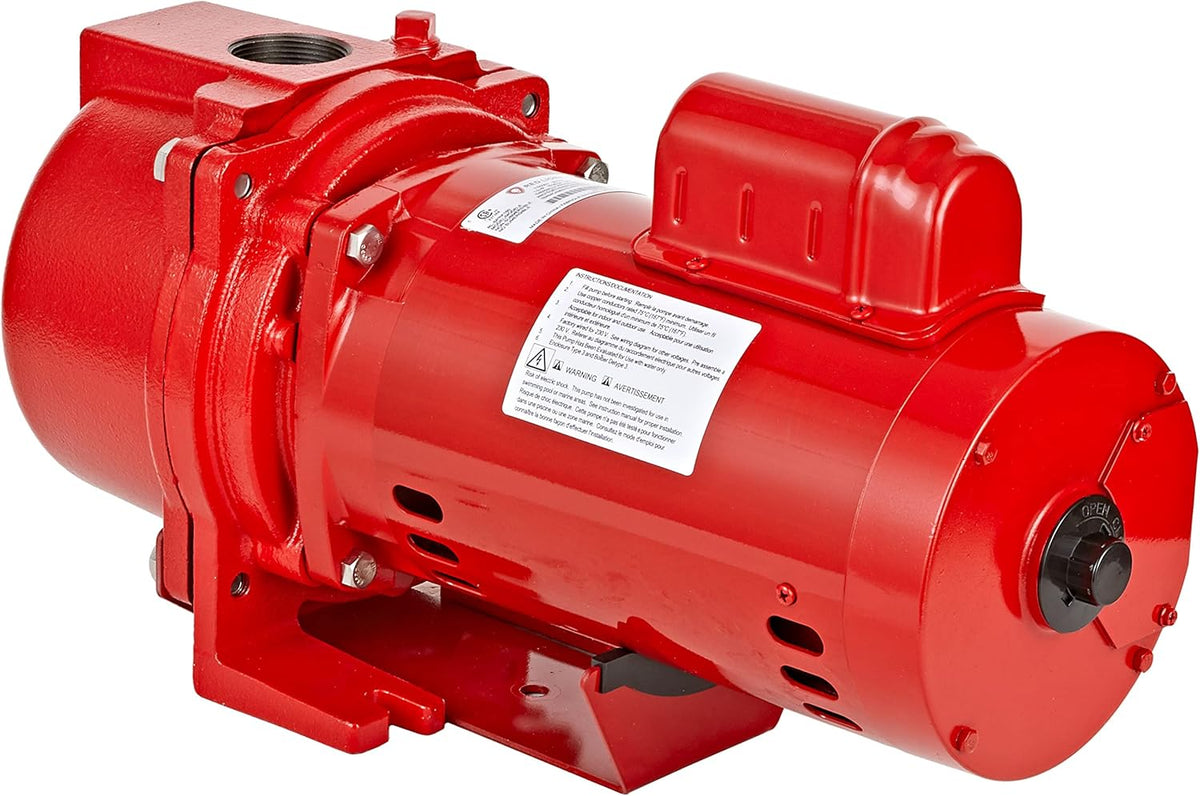

Power your sprinkler or other irrigation system easily and reliably using this Red Lion Self-Priming Sprinkler Pump. The cast iron body, streamlined shape, and hardy motor make this pump fantastic for transferring water, irrigating your garden, or supplementing your home water pressure. Its 2' diameter suction is great for a full water flow, and the discharge accepts 1 1/2' piping to direct the water toward your supply system or holding tank. The high efficiency, thermoplastic impeller and diffuser offer plenty of durability, and the cast iron casing lasts for seasons of service. A plug at the top of the pump removes for priming the item up to 25' prior to use. The heavy duty, single phase, 1 1/2 horsepower motor runs on either 115 or 230 volts, for plenty of water movement. The item has a maximum flow rate of 71 gallons per minute, and a working maximum pressure of 44 PSI. Place the attached, bottom bracket on a level surface as close as possible to your water source, and use bolts to secure it in a protected area for optimal performance. Keep your garden irrigation or turf sprinkler system properly working with this Self-Priming Sprinkler Pump. Two year limited . Model Number: RL-SPRK150 Dimensions: 18. 75'L x 8'W x 10'H Inlet: 2' NPT pipe Discharge: 1 1/2' NPT pipe Maximum Flow: 71 gpm Maximum Pressure: 44 PSI Priming Height: up to 25' Power: 1 1/2 Hp, 18. 6 or 9. 3 amps Voltage: single phase, 115 or 230 volts Construction: cast iron, metal Mfg. : 2 year limited

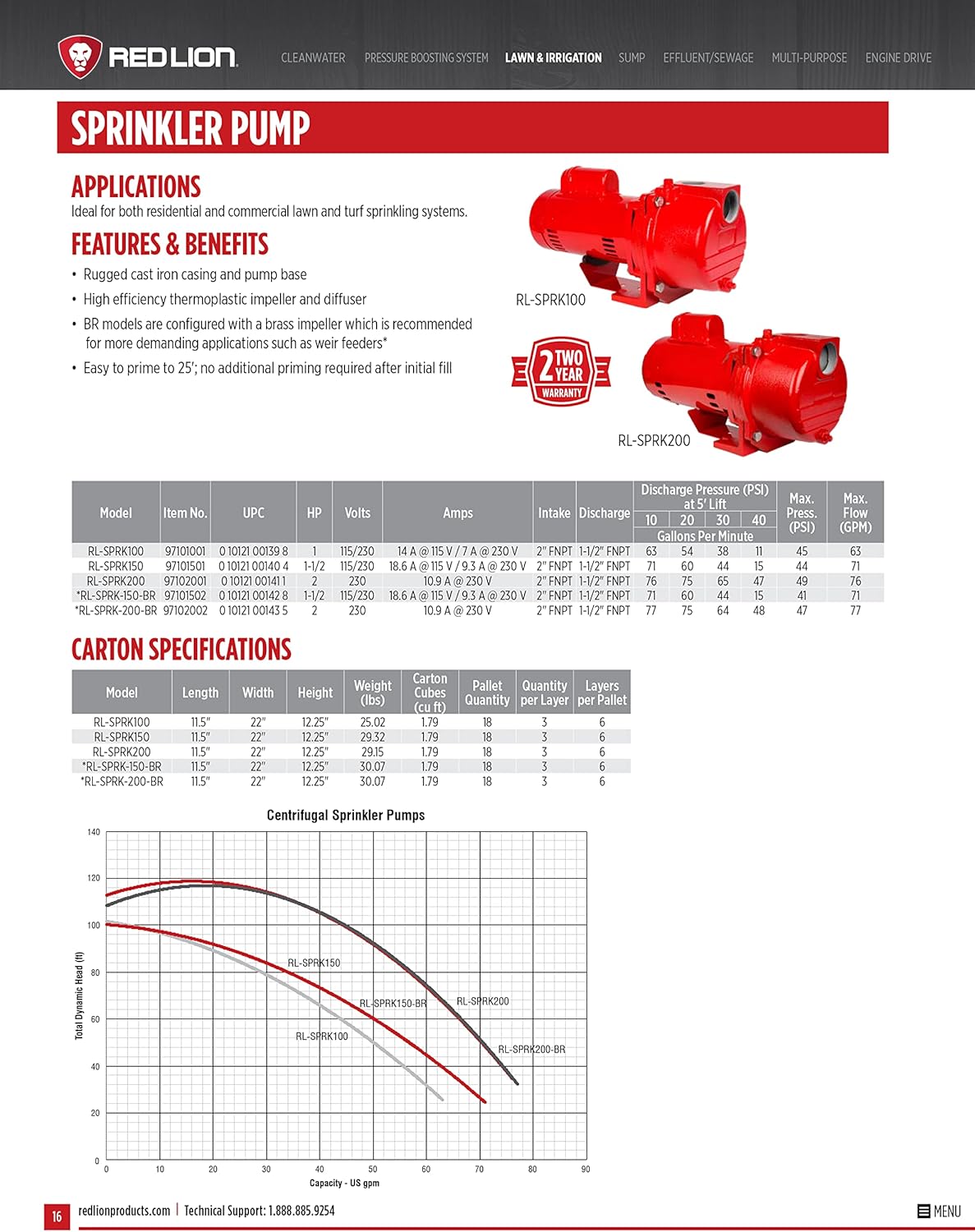

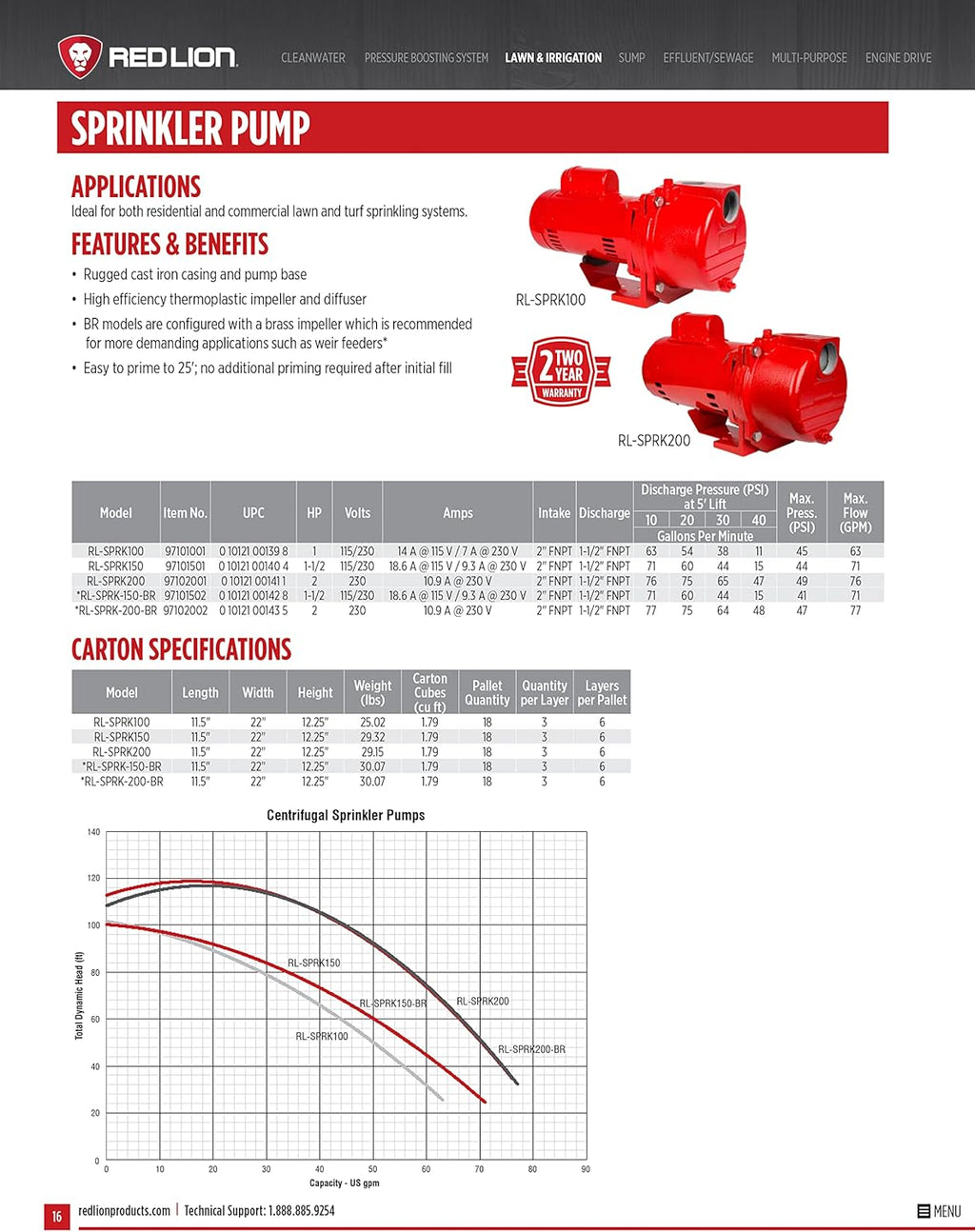

| Red Lion RL-SPRK100, 97101001 | Red Lion RL-SPRK150, 97101501 | Red Lion RL-SPRK200, 97102001 | Red Lion RL-SPRK-150-BR, Brass Impeller, 97101502 | Red Lion RL-SPRK-200-BR, Brass Impeller, 97102002 | |
|---|---|---|---|---|---|
| HP | 1 HP | 1.5 HP | 2 HP | 1.5 HP | 2 HP |
| GPM at 30 PSI at 5 Ft. Lift | 38 GPM | 44 GPM | 65 GPM | 44 GPM | 64 GPH |
| Impeller Material | Glass-filled Thermoplastic | Glass-filled Thermoplastic | Glass-filled Thermoplastic | Brass | Brass |
| Voltage | Dual (115/230 Volts) | Dual (115/230 Volts) | 230 Volts | Dual (115/230 Volts) | 230 Volts |
| Amps at 115 Volts | 14A | 18.6A | Not Applicable | 18.6A | Not Applicable |
| Amps at 230 Volts | 7A | 9.3A | 10.9A | 9.3A | 10.9A |
| 2-inch FNPT Intake | ✓ | ✓ | ✓ | ✓ | ✓ |
| 1.5-inch FNPT Discharge | ✓ | ✓ | ✓ | ✓ | |
| Maximum Pressure | 45 PSI | 44 PSI | 49 PSI | 41 PSI | 47 PSI |
| Number of Sprinklers per Zone (1/2-inch fittings) at 30 PSI) | 12 Sprinkler Heads | 14 Sprinkler Heads | 21 Sprinkler Heads | 14 Sprinkler Heads | 15 Sprinkler Heads |
